Features
- Compliant with MIL-STD-810-F/G
- Compliant with E-Mark/SAE J113/ISO 7637-2
- Data security (QEraser/ SEraser/ Destroy/ Write Protect)
- High random R/W performance
- iSMART disk health monitoring
- Inligent error recovery system
- Enhanced power cycling management
- iCell technology for data protection
- Conformal coating (optional)
Overview

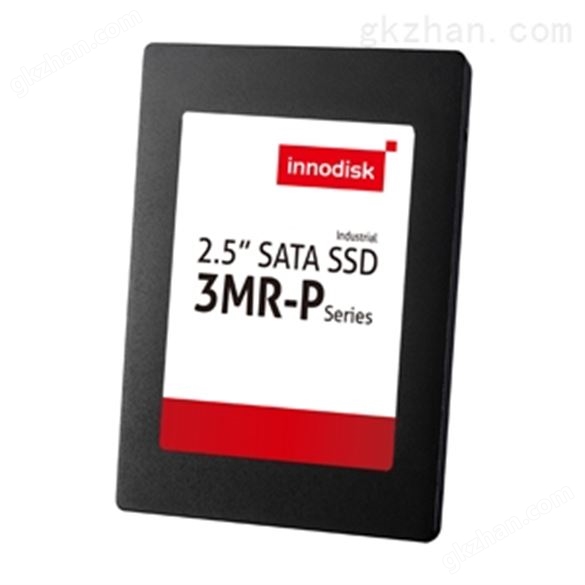

Innodisk 2.5" SATA SSD 3MR-P is a SATA III 6.0Gb/s Flash based disk, which delivers excellent performance and reliability. Especially, it comes with several data security functions, including QEraser/ SEraser/ Destroy and also Write Protect. All the security functions can be triggered both by hardware and software approaches. 2.5" SATA SSD 3MR-P is compliant with MIL-STD-810F/G standards and E-Mark/SAE J113/ISO 7637-2 for EMI resistant. The SSD is equipped ruggedized hardware design and thus it can perform well in the harsh environment. 2.5" SATA SSD 3MR-P is developed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.
Specifications
Availability
Model Name 2.5" SATA SSD 3MR-P
Interface SATA III 6.0 Gb/s
Type 2.5"
Flash Type MLC
Capacity 32GB~512GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 500 / 260
Max. Power Consumption 5 W (5V x 1A )
Thermal Sensor Y
External DRAM Buffer Y
ATA Security Y
Conformal Coating Optional
S.M.A.R.T. Y
Dimension (LxH/mm) 69.8 x100.1 x 9.2
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
